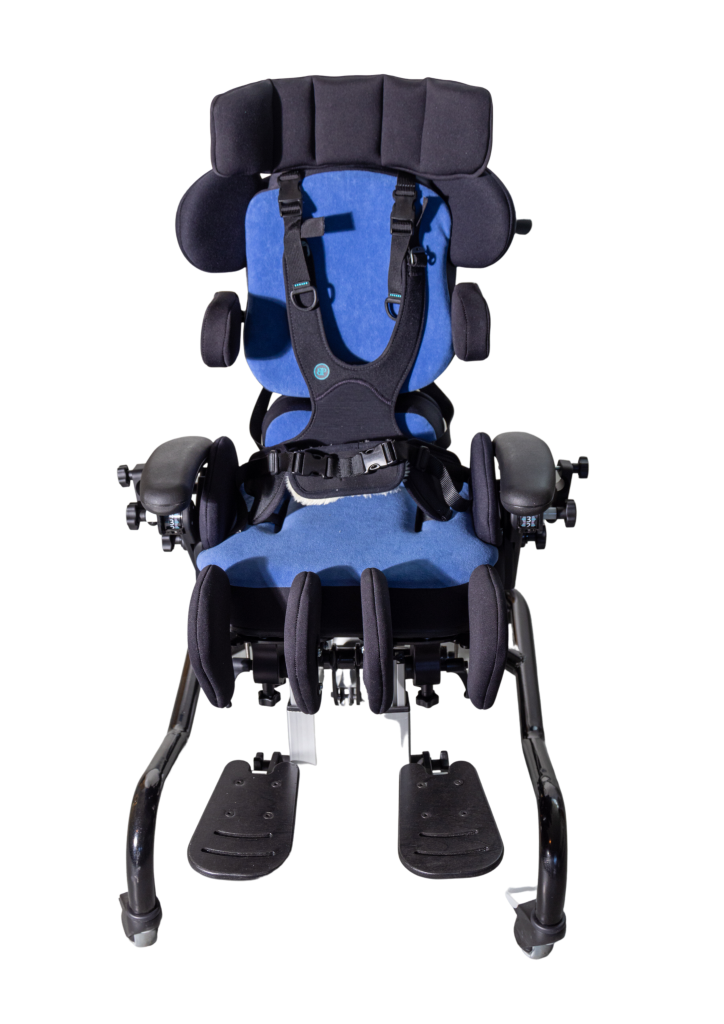

Asiento
Levitex Foam Technology
Plus RangeOur innovative and bespoke chair for children, teenagers and young adults with moderate to complex needs.
Description
Asiento has been designed specifically for children, teenagers and adults with moderate to complex needs.
Created to achieve improved postural support and symmetry, the Asiento delivers many benefits to the user and those around them, including:
- enhanced eye contact and communication
- improved interaction, breathing and eating
- greater participation in play and activities.
What makes Asiento great?
Developed alongside input from clinical professionals, Asiento has been designed to help the user achieve their full potential while increasing their self-esteem and well-being.
With high adjustability, Asiento delivers excellent clinical benefits whilst being functional too.
Durable - accessories are attached to the seat’s strong central column making the Asiento robust and sturdy.
Dyanmic back (optional) - the dynamic back is pressure adjustable to provide the desired dynamic movement. This is great for users who require sensory and physical feedback whilst sitting.
Closer contact - the open design of the chassis and pushbike handles allows carers to get close to the backrest. This is especially useful for upper-limb therapy, crossing midline, administering care and calming the user after an epileptic fit or when anxious.

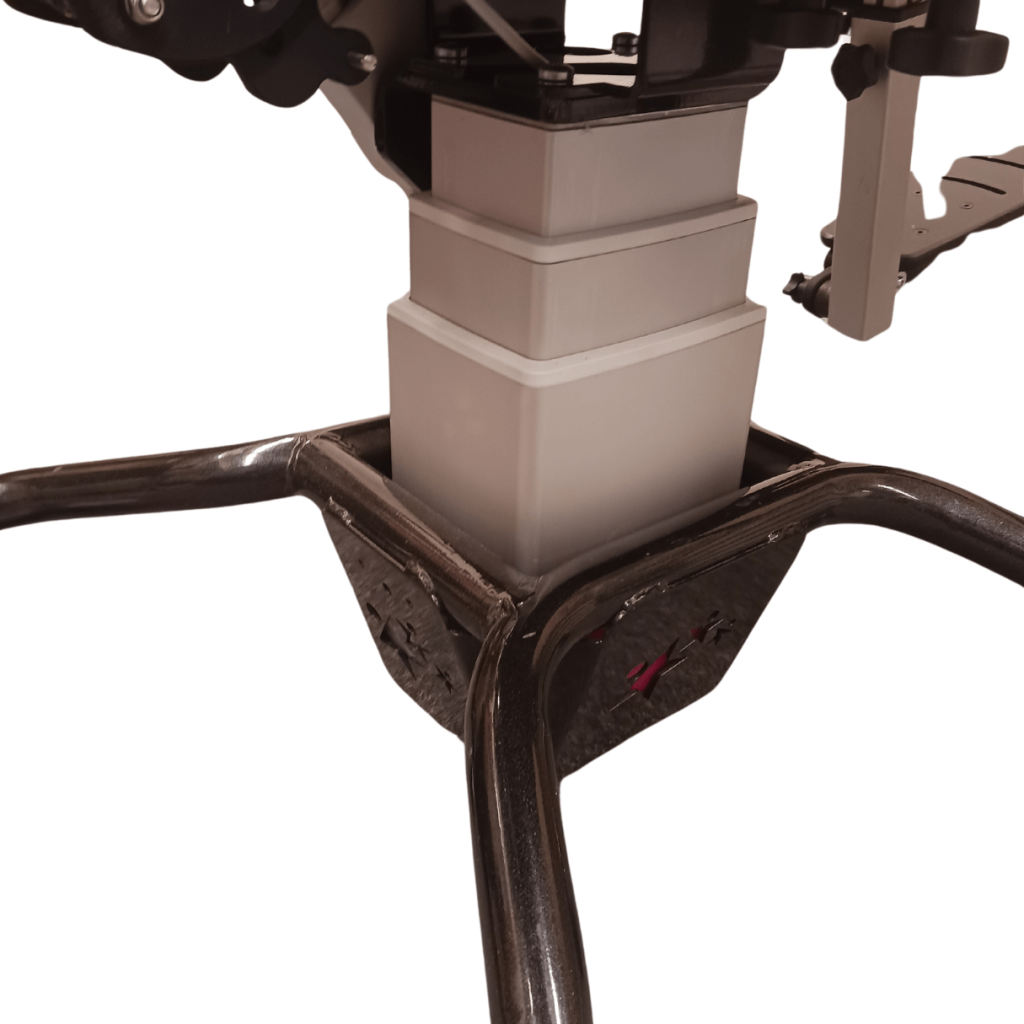

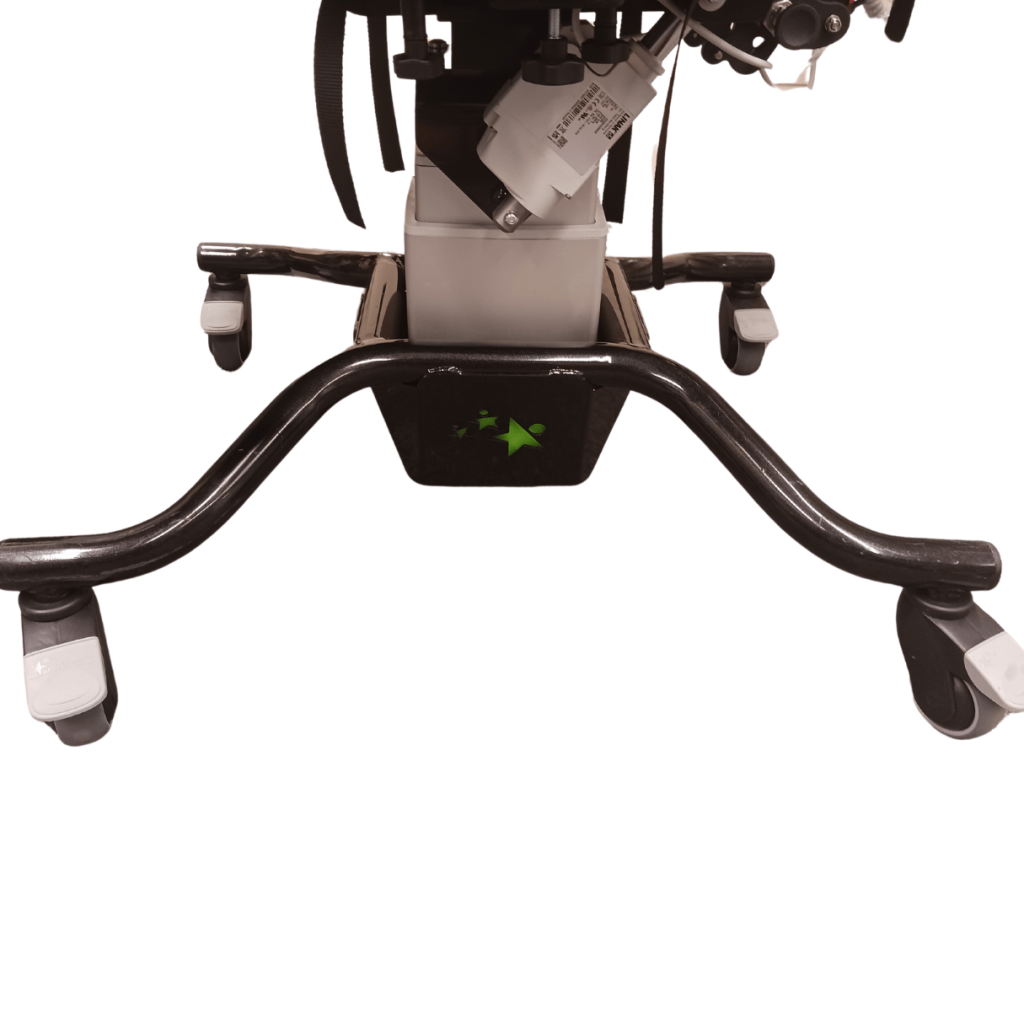

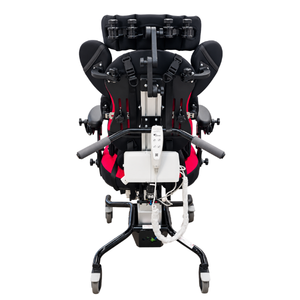

Quiet electric hi-lo base - with the electric hi-lo base, users can smoothly raise and lower the chair to the desired height with a user-operated remote control. It’s quiet too, helping those who are sensitive to sound.

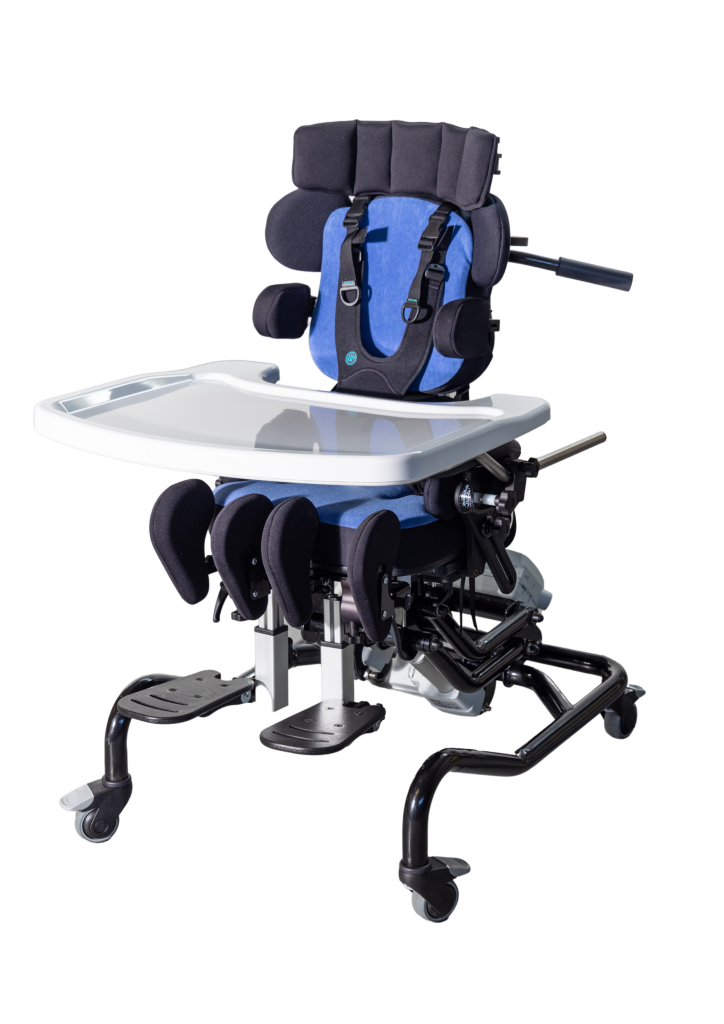

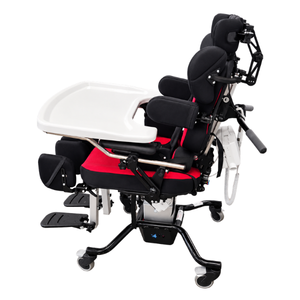

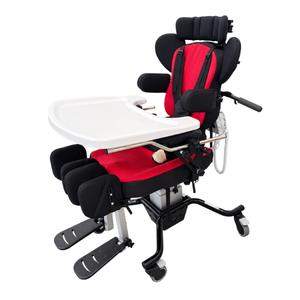

Easy to use tray - the universal tray is easily attached to the armrests. The tray adjusts with the armrests to allow for use on all seat widths and also in depth, providing the best fit possible for all sized users.
We’re here to help
The Asiento has been designed to help the user achieve their full potential while increasing their self-esteem and well-being. To gain these benefits, it’s important that the Asiento is correctly fitted, that’s why our customer support team and technical product advisors are here to work with you.
Standard features:
- Optional dynamic back

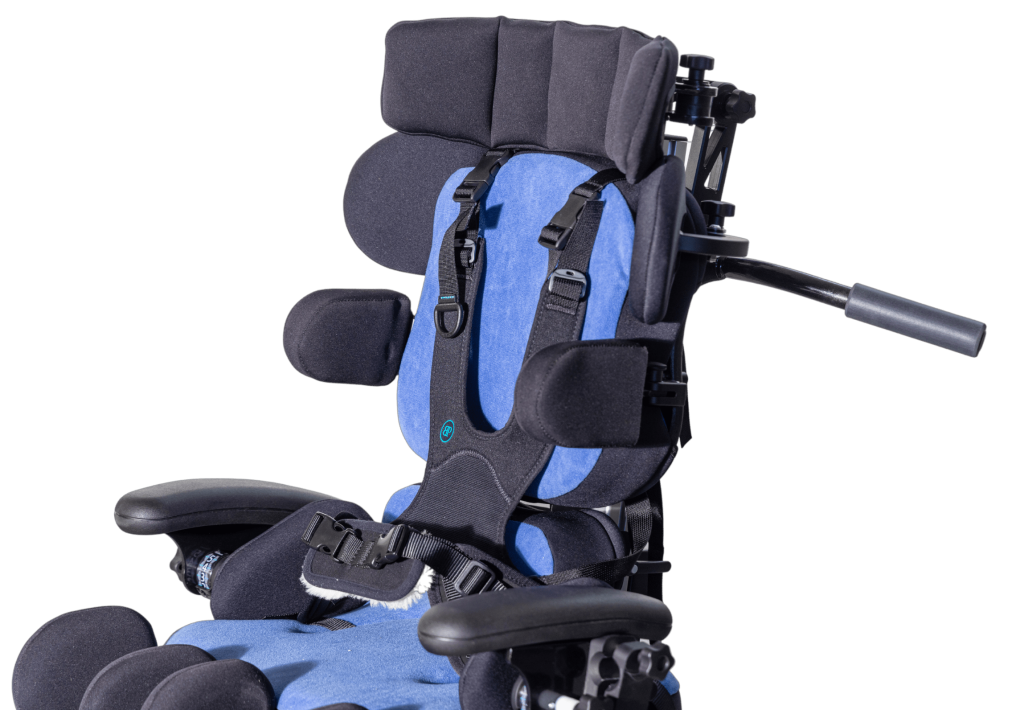

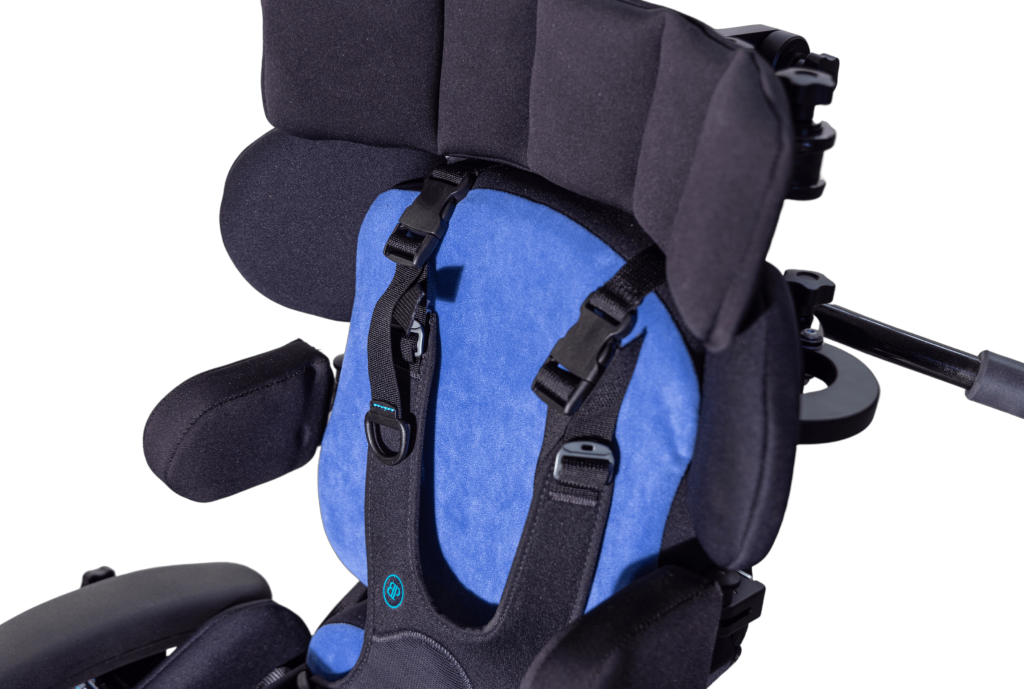

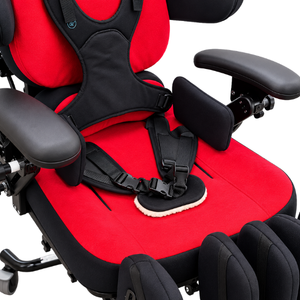

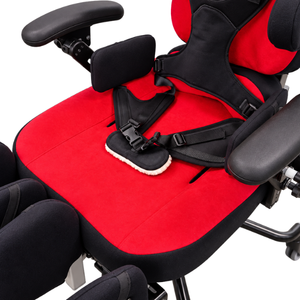

- Bodypoint harness
- Lap strap
- Electric hi-lo base
- Highly adjustable
ASIENTO SIZE 3 NOW AVAILABLE IN OUR NEW PLUS RANGE!
User Guides
Size Guide
| Size | 1 | 2 | 3 |
|---|---|---|---|
| Code | 1011 | 1012 | 1013 |
| Age range | 1-6 years | 6-12 years | 12-18 years |
| Max user weight | 80kg | 80kg | 120kg |
| Seat depth (min-max) | 190-300mm | 260-360mm | 365-600mm |
| Seat width | 285mm | 410mm | 480mm |
| Back rest height | 350-430mm | 420-510mm | 490-590mm |
| Seat height from floor | 290-565mm | 290-565mm | 490 -570mm |
| Lower leg length (seat to footplate) | 210-320mm | 210-320mm | 310-560mm |
| Armrest height (min-max from seat) | 110-325mm | 110-325mm | 110-325mm |
| Lateral supports travel adjustment | 50mm | 65mm | 65mm |

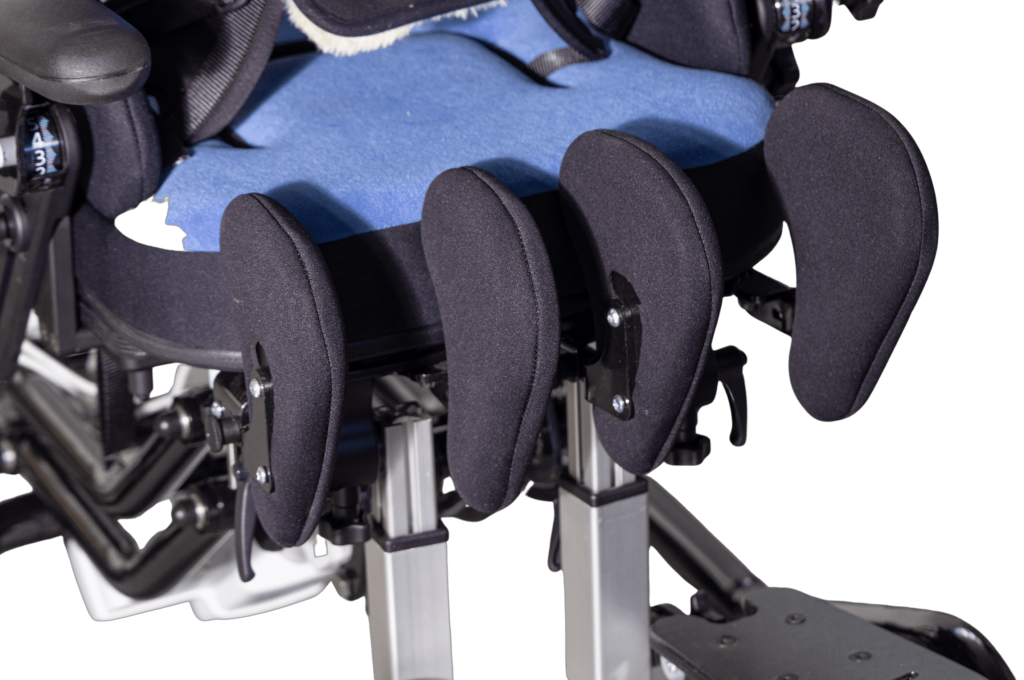

| Hip guide travel adjustment | 70mm | 70mm | 70mm |
| Abduction pad travel adjustment | 50mm | 50mm | 50mm |
| Adduction pad travel adjustment | 50mm | 50mm | 50mm |
| Chest width | 250-350mm | 250-390mm | 310-440mm |
| Armrest angle (forwards/backwards) | 90°/90° | 90°/90° | 90°/90° |
| Back angle (forwards/backwards) | 10°/32° | 10°/32° | 10°/32° |
| Footrest angle (forwards/backwards) | 90°/20° | 90°/20° | 90°/20° |
| Footplate Angle (plantarflexion/dorsiflexion) | 45°/25° | 45°/25° | 45°/25° |
| Abduction angle | 23° | 23° | 23° |
| Adduction angle | 23° | 23° | 23° |
| Tilt in space (forwards/backwards) | 10°/20° | 10°/20° | 10°/20° |
| Tray size | 660 x 440mm | 660 x 440mm | 660 x 440mm |
| Seat width between thigh guides | 230-370mm | 260-390mm | 332-445mm |

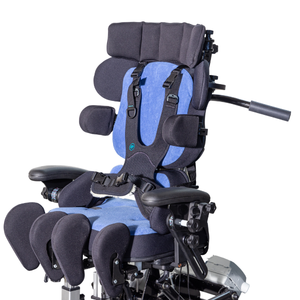

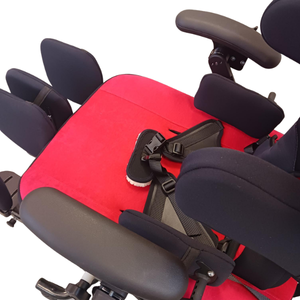

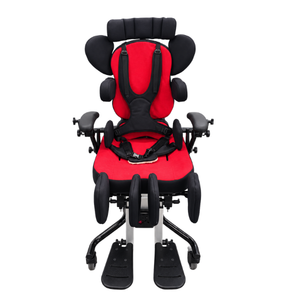

Gallery
Colour Ranges
Deluxe Range
The Deluxe range can be used on most products
-
Purple
-
Red
-
Blue
-
Grey
Just Colour range - vinyl
Just Colour range can be used on most products
-
Ocean Blue
-
Rouge
-
Gingersnap
-
Marigold
-
Eden
-
Cobalt (Black)
-
Candy Pink
-
Cool Blue
-
Cherry Blossom
-
Lilac
-
Sea Green
-
Citrus Green
-
Greyfriar
-
Jasmine White
Asiento
This applies to the Asiento range only
-
Plum
-
Ash
-
Cornflower
-
Teal
-

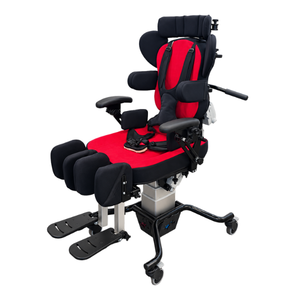

Red
-
Black
Colours are a guide only and may vary due to limitations of the print process.
Material samples are available upon request. Colour range may change without prior notice, we try to colour match where possible.
